Confusion with Maximal Ratio Combining(MRC) in SIMO OFDM

Started by cogwsn 5 years ago6 replieslatest reply 5 years ago636 views

My basic question is that in SIMO OFDM system with Maximal Ratio Combining :

Do we need to do equalization after MRC or just send the combined signal for further steps i.e. steps after equalization?

(Apology if I am asking something trivial)

Here are details :

Consider a 1 X V SIMO OFDM system. (802.11g system, FFT size 64, data subcarrier 48).

After FFT on all V RX ports, the channel estimate for the V channels are obtained. The channel estimates are 48 X 1 each.

Using those channel estimates we do MRC combining of V Rx streams according to following equation

XXMP9_Nmif3fw-_ExRODFBr3awpJ9ugym4dezogt

where Yv is complex sample stream 48 X 1 from Vth antenna. Hv is a diagonal matrix 48 x 48 with diagonal elements as channel estimate for Vth antenna. The output of the above equation will be summation of V 48 X 1 matrices i.e a single 48 X 1 matrix.


Now after this, this, does YMRC needs to be equalized ? For example using MMSE or ZF etc ?


If yes, which channel estimate out of V such channel estimates will be used for equalization ? Because for every antenna, there is a channel estimate 48 X 1.


Expression for ZF and MMSE are below :


ZF equalizer:  1/H[i]
MMSE equalizer:  H*[i]/ (H[i].H*[i] + N0)


Where H[i] is the channel coefficient for the ith subcarrier on Vth RX stream and N0 is the noise variance on the Vth RX antenna.




[ - ]
Reply by SlartibartfastDecember 9, 2017

If you do the combining first, you will get the SNR improvement of the combiner and will be equalizing on the combined channels.   If you do the equalizing first, you will get the SNR improvement on the equalized channels.   Which one yields the best improvement may depend on the channels and the implementation of the equalizers.

Combining first may reduce complexity if it is cheaper to have one combiner and one equalizer rather than two equalizers and one combiner.

In general, though, or at least in my experience it is often beneficial to combine after equalization.   Again, though, this may be channel and system dependent, especially if complexity is a significant concern.

[ - ]
Reply by cogwsnDecember 9, 2017

As you said "If you do the combining first, you will get the SNR improvement of the combiner and will be equalizing on the combined channels."

So for the equalization step, which channel estimate will be used because now after combining, I have one signal vector but multiple channel estimate vectors(one from each of the RX path).

[ - ]
Reply by SlartibartfastDecember 9, 2017

If you combine first before equalization, you have to train the equalizer on the combined signal, not either of the pre-combined signals.

[ - ]
Reply by cogwsnDecember 9, 2017

Ohh I see! So let me know if my understanding is correct (thanks much for your time :))

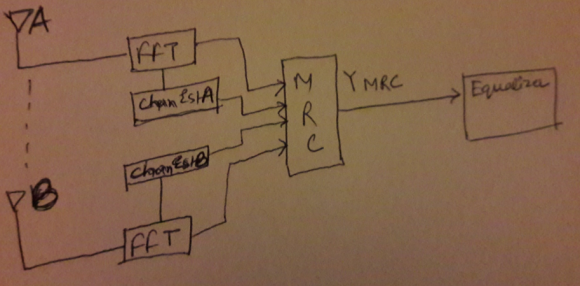

image 1_14204.png

Considering the case of 802.11g system where long training sequence(LTS) is used for channel estimation.

Step-1 I use LTS for getting channel estimation(chest) on branch A and B, say Ha and Hb.

Step-2 I do MRC on the two RX streams from A and B using Ha* and Hb* and I get a stronger signal. Using MRC, I combine the entire OFDM frame including LTS and the payload.

Step-3 Now I use the LTS of the combined signal to again estimate the channel say Hmrc

Step-4 I do equalization of the stronger signal using Hmrc



[ - ]
Reply by SlartibartfastDecember 9, 2017

You only need an SNR estimate from each input signal to do the combining rather than a full channel estimate if you want to do the combining first.   You can use the LTS for that, and then do a channel estimation (rather than just an SNR estimation) later on the combined signal after the combiner.

If you look at the details of this you will see that there are a number of tradeoffs that may lead one to select doing a full channel estimation and combining first prior to equalization, depending on the architecture and implementation choices.   I wouldn't say it is a slam dunk that either way is superior in general.

This is the sort of thing where simulation can be extremely useful to try both methods and see which may offer the best tradeoff for your system in the type of channels that you expect the system to be exposed to and for the performance requirements that you may have.

[ - ]
Reply by cogwsnDecember 9, 2017

Ok its clearer to me now :)
