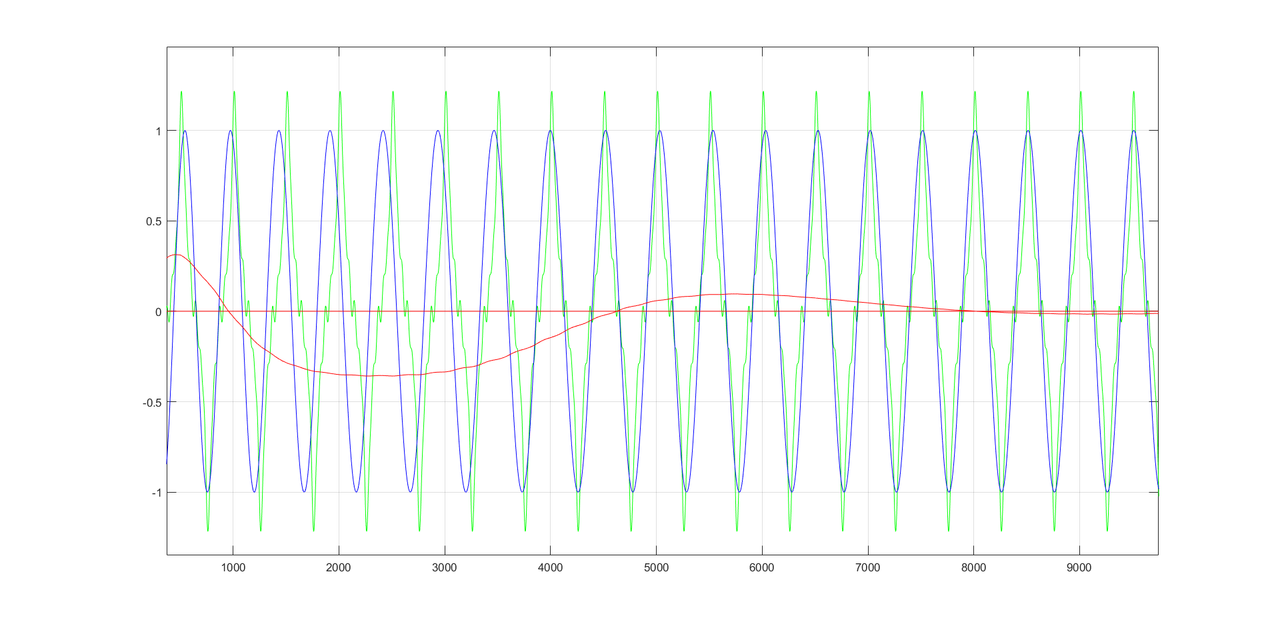

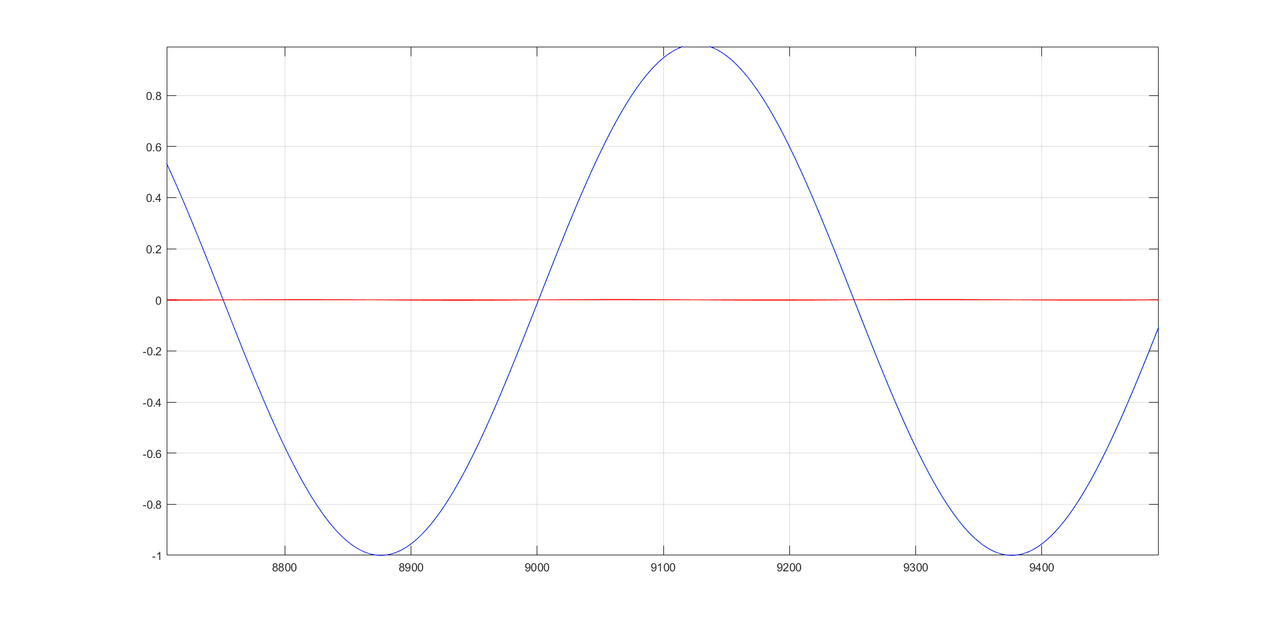

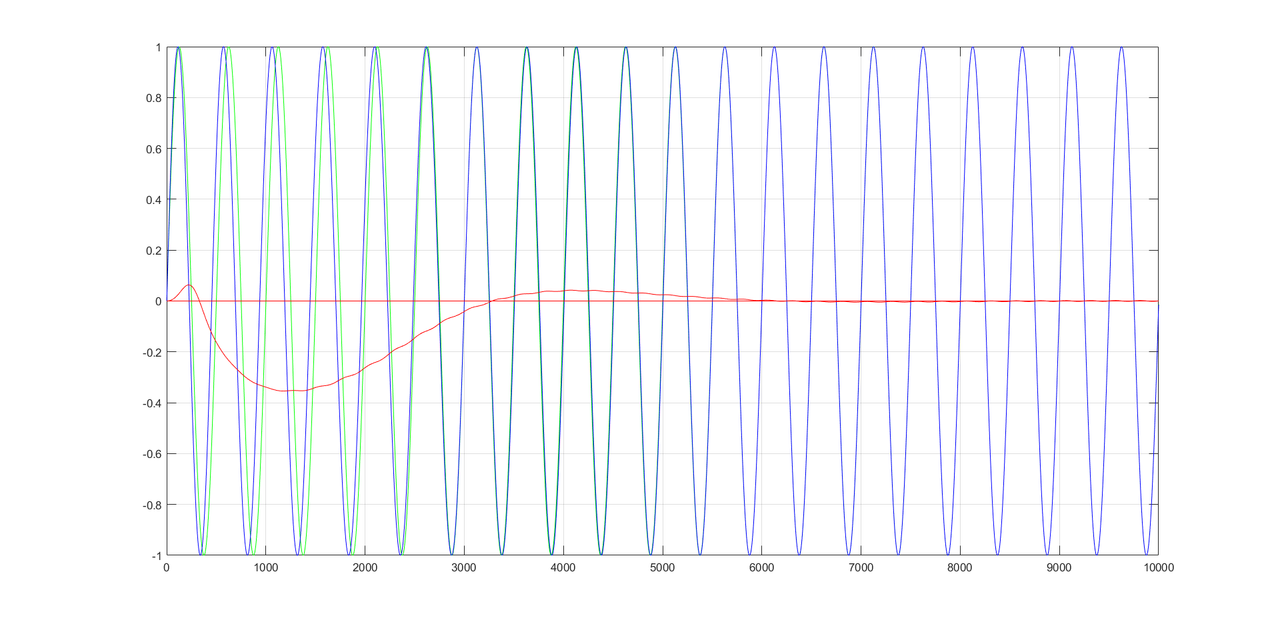

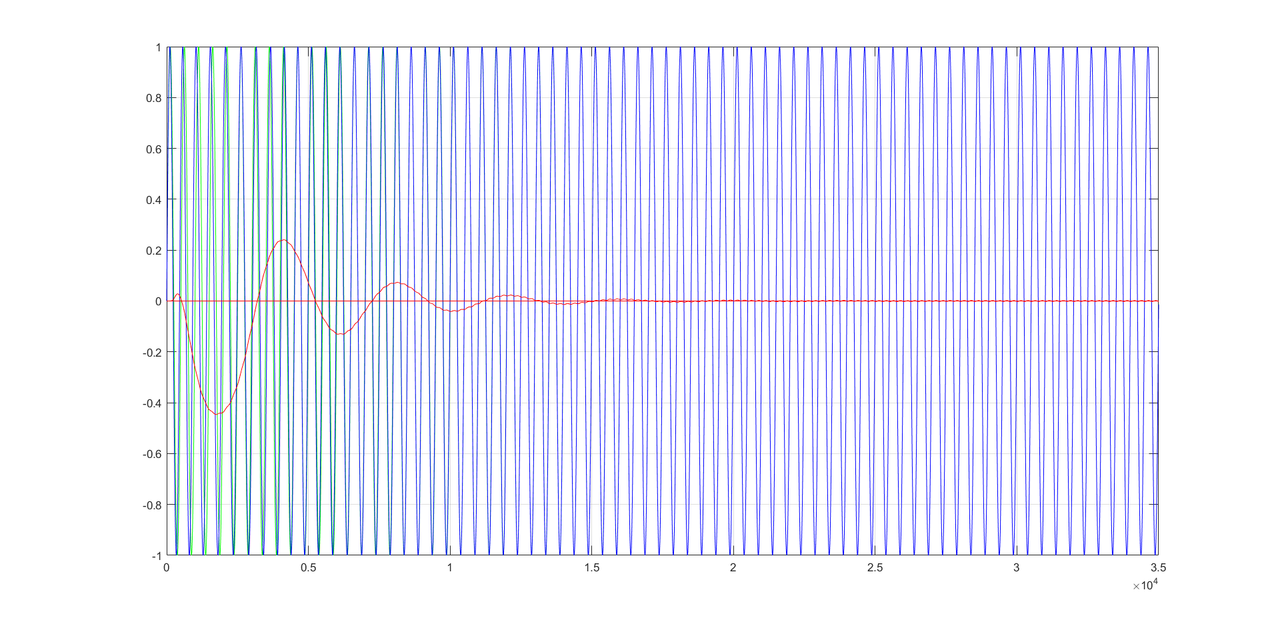

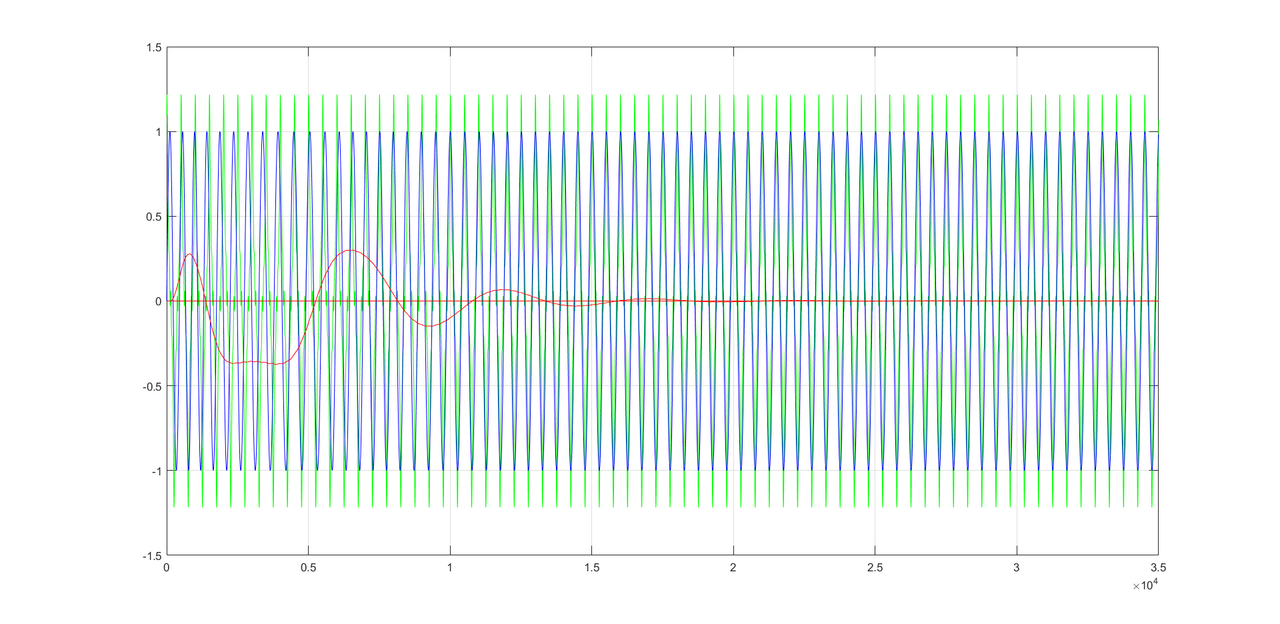

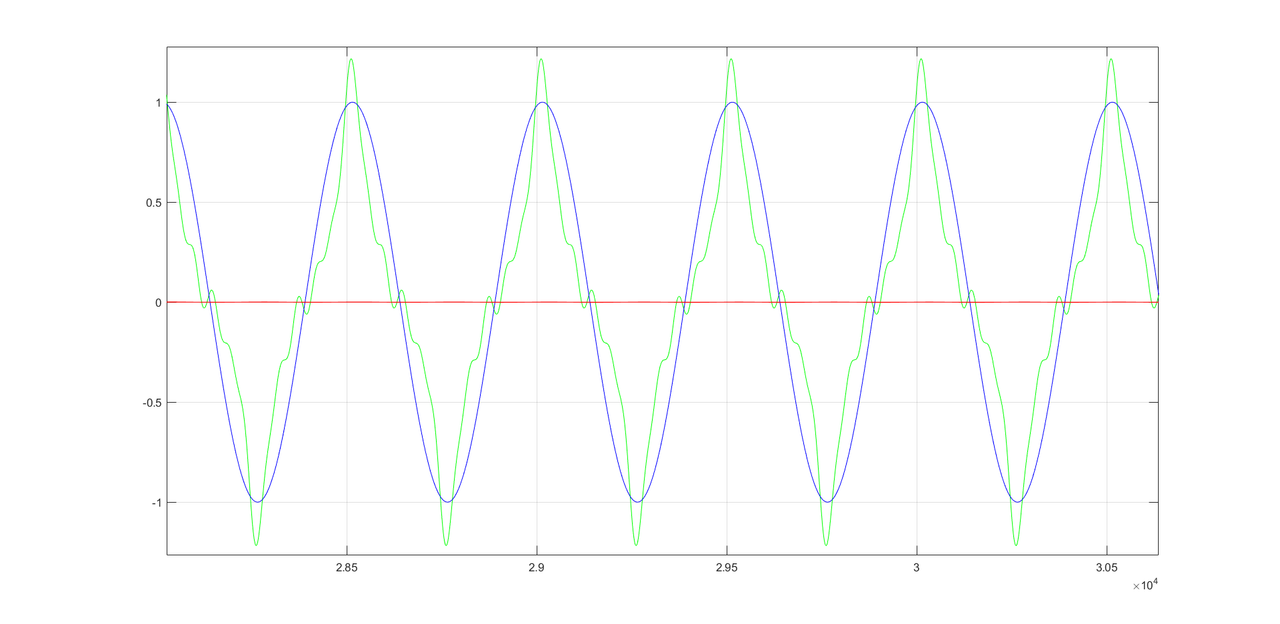

I have a classic digital PLL with multiplier-based phase detector, intended to lock at 50Hz. The sampling frequency Fs is 25kHz, the loop filter bandwidth varies between Fc=10Hz to 40Hz, as I am experimenting with different filter structures. The PLL itself works like a charm and my reference filter is a 500th order FIR: fir1(500,Fc/(Fs/2)). To a reasonable degree the loop converges to a 55Hz input signal after 4..5 periods; after about 12 periods the phase error is essentialy zero: https://i.postimg.cc/MpmPz0QK/convergence-sine-fir.png https://i.postimg.cc/hGGrgknp/convergence-sine-fir-magnified.png (green is the input, blue is the VCO signal, red is the error) Interestingly, in the case of a heavily distorted signal the convergence is still great: input=0.5*(1.5*sin(2*pi*f0+(80.0/180.0)*pi)+0.5*sin(3*2*pi*f0+(60.0/180.0)*pi) + 0.2*sin(5*2*pi*f0+(45.0/180.0)*pi) + 0.15*sin(7*2*pi*f0+(36.0/180.0)*pi) + 0.1*sin(11*2*pi*f0+(30.0/180.0)*pi)) https://i.postimg.cc/t48TCPQw/convergence-sine-fir-distorted.png But to te point: as the overhead of the FIR is bit too high, my next attempt was to use 2 sections of the same biquad fs=25e3; fc=35; Wc=fc/fs; [B,A] = cheby1(2,1,Wc); The convergence rate is worse, but still acceptable. I am concerned with the huge relative magnitude of the B and A coefficients, as the target implementation is going to be fixed-point. But as a double-based proof of concept it is fine. My third attempt was to use an exponential moving averager and experiment with the alpha. It turns out that 8 EMA sections (I'm not sure the term "order" is still correct here) in series, all with alpha=1/70 work comparably well to the IIR. The number of multiplications is a bit higher than in the case of a biquad (16 instead of 10), but the structure seems to be unconditionally stable and easy to implement in fixed-point. It even seems to require less scaling fun than a good implementation of the FIR. https://i.postimg.cc/TPPZSN4X/convergence-ema-sine.png https://i.postimg.cc/MTVtryqS/convergence-ema-distorted.png https://i.postimg.cc/5yf57TsB/convergence-ema-distorted-magnified.png (in the last case the VCO tracks the f0 frequency component exactly, there is no phase error, contrary to the first impression from the plot). I think I am onto something, but most likely not the first one. Could you please explain to me why the multi-stage EMA works so well or suggest a good reading on the theoretical properties of this kind of structures? I haven't seen the performance of EMAs appreciated in the entry-level DSP books. Best regards, Piotr

# High-order EMA works great - but why?

Started by ●March 24, 2019

Reply by ●March 25, 20192019-03-25

Piotr Wyderski <peter.pan@neverland.mil> wrote:>I have a classic digital PLL with multiplier-based phase detector, >intended to lock at 50Hz. The sampling frequency Fs is 25kHz, the loop >filter bandwidth varies between Fc=10Hz to 40Hz, as I am experimenting >with different filter structures. The PLL itself works like >a charm and my reference filter is a 500th order FIR: fir1(500,Fc/(Fs/2)). > >To a reasonable degree the loop converges to a 55Hz input signal after >4..5 periods; after about 12 periods the phase error is essentialy zero: > >https://i.postimg.cc/MpmPz0QK/convergence-sine-fir.png >https://i.postimg.cc/hGGrgknp/convergence-sine-fir-magnified.png > >(green is the input, blue is the VCO signal, red is the error) > >Interestingly, in the case of a heavily distorted signal the convergence >is still great: > >input=0.5*(1.5*sin(2*pi*f0+(80.0/180.0)*pi)+0.5*sin(3*2*pi*f0+(60.0/180.0)*pi) >+ 0.2*sin(5*2*pi*f0+(45.0/180.0)*pi) + >0.15*sin(7*2*pi*f0+(36.0/180.0)*pi) + 0.1*sin(11*2*pi*f0+(30.0/180.0)*pi)) > >https://i.postimg.cc/t48TCPQw/convergence-sine-fir-distorted.png > >But to te point: as the overhead of the FIR is bit too high, my next >attempt was to use 2 sections of the same biquad > > fs=25e3; > fc=35; > Wc=fc/fs; > > [B,A] = cheby1(2,1,Wc); > >The convergence rate is worse, but still acceptable. I am concerned >with the huge relative magnitude of the B and A coefficients, as the >target implementation is going to be fixed-point. But as a double-based >proof of concept it is fine.You can use a lattice topology to reduce the coefficient sensitivity and ensure stability when implementing this transfer function. (If you're using Matlab with the filter design thingie, this is called an "ARMA" filter.)>My third attempt was to use an exponential moving averager and >experiment with the alpha. It turns out that 8 EMA sections (I'm not >sure the term "order" is still correct here) in series, all with >alpha=1/70 work comparably well to the IIR.Is this another way of saying you're using a cascade of single-pole IIR filters? Which is to say, you're using a Bessel filter? Steve

Reply by ●March 26, 20192019-03-26

On Monday, March 25, 2019 at 8:52:55 PM UTC-4, Steve Pope wrote:> Piotr Wyderski <peter.pan@neverland.mil> wrote: > > >I have a classic digital PLL with multiplier-based phase detector, > >intended to lock at 50Hz. The sampling frequency Fs is 25kHz, the loop > >filter bandwidth varies between Fc=10Hz to 40Hz, as I am experimenting > >with different filter structures. The PLL itself works like > >a charm and my reference filter is a 500th order FIR: fir1(500,Fc/(Fs/2)). >why does it work so well? because with a passband requirement of circa 50 Hz and a stopband requirement circa 25 kHz, the loop filter is not particularly challenging. Why use a 500 order filter? fundamentally the filtering is easy because your Fs is much higher compared to the desired loop BW. Works the same way in analog implementations. m

Reply by ●March 26, 20192019-03-26

Le dimanche 24 mars 2019 04:19:09 UTC-4, Piotr Wyderski a écrit :> I have a classic digital PLL with multiplier-based phase detector, > intended to lock at 50Hz. The sampling frequency Fs is 25kHz, the loop > filter bandwidth varies between Fc=10Hz to 40Hz, as I am experimenting > with different filter structures. The PLL itself works like > a charm and my reference filter is a 500th order FIR: fir1(500,Fc/(Fs/2)). > > To a reasonable degree the loop converges to a 55Hz input signal after > 4..5 periods; after about 12 periods the phase error is essentialy zero: > > https://i.postimg.cc/MpmPz0QK/convergence-sine-fir.png > https://i.postimg.cc/hGGrgknp/convergence-sine-fir-magnified.png > > (green is the input, blue is the VCO signal, red is the error) > > Interestingly, in the case of a heavily distorted signal the convergence > is still great: > > input=0.5*(1.5*sin(2*pi*f0+(80.0/180.0)*pi)+0.5*sin(3*2*pi*f0+(60.0/180.0)*pi) > + 0.2*sin(5*2*pi*f0+(45.0/180.0)*pi) + > 0.15*sin(7*2*pi*f0+(36.0/180.0)*pi) + 0.1*sin(11*2*pi*f0+(30.0/180.0)*pi)) > > https://i.postimg.cc/t48TCPQw/convergence-sine-fir-distorted.png > > But to te point: as the overhead of the FIR is bit too high, my next > attempt was to use 2 sections of the same biquad > > fs=25e3; > fc=35; > Wc=fc/fs; > > [B,A] = cheby1(2,1,Wc); > > The convergence rate is worse, but still acceptable. I am concerned > with the huge relative magnitude of the B and A coefficients, as the > target implementation is going to be fixed-point. But as a double-based > proof of concept it is fine. > > My third attempt was to use an exponential moving averager and > experiment with the alpha. It turns out that 8 EMA sections (I'm not > sure the term "order" is still correct here) in series, all with > alpha=1/70 work comparably well to the IIR. The number of > multiplications is a bit higher than in the case of a biquad (16 > instead of 10), but the structure seems to be unconditionally > stable and easy to implement in fixed-point. It even seems to > require less scaling fun than a good implementation of the FIR. > > https://i.postimg.cc/TPPZSN4X/convergence-ema-sine.png > https://i.postimg.cc/MTVtryqS/convergence-ema-distorted.png > https://i.postimg.cc/5yf57TsB/convergence-ema-distorted-magnified.png > > (in the last case the VCO tracks the f0 frequency component exactly, > there is no phase error, contrary to the first impression from the plot). > > I think I am onto something, but most likely not the first one. > Could you please explain to me why the multi-stage EMA works so > well or suggest a good reading on the theoretical properties of > this kind of structures? I haven't seen the performance of EMAs > appreciated in the entry-level DSP books. > > Best regards, PiotrQuick question : Since your frequency is 50 Hz, why not use a SOGI-PLL? Is there a reason to try another filter structure?
