Signal processing of an IVQ-3005 Radar Module
Started by 6 years ago●157 viewsI'm going to use that module for detecting range, velocity and angle, for that radar.https://www.innosent.de/fileadmin/media/dokumente/datasheets/180222_Datenblatt_IVQ-3005.pdf
So I have read a lot of radar techniques and I'm going to use the mode FMCW, and the modulated signal will be a sawtooth (chirps).
I have 4 signals I1, Q1, I2, Q2.

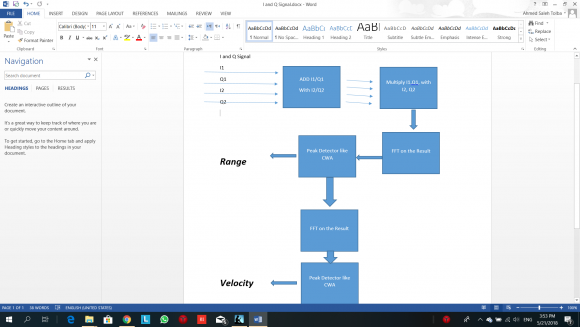

I need to confirm my understanding of the signal processing algorithms
I wrote a basic algorithm, hope that's correct
/* FFT length must be a power of 2 */ #define FFT_LENGTH 16 #define M 4 /* must be log2(FFT_LENGTH) */ #define ECHO_SIZE 12 void main() { int i,j,k; float tempflt,rin,iin,p1,p2; static float mag[FFT_LENGTH]; static COMPLEX echos[ECHO_SIZE][FFT_LENGTH]; static COMPLEX last_echo[ECHO_SIZE]; /* read in the first echo */ for(i = 0 ; i < ECHO_SIZE ; i++) { last_echo[i].real = getinput(); last_echo[i].imag = getinput(); } // Read in the Second channgel // Add first channel I/Q to second channel. for(;;) { for (j=0; j< FFT_LENGTH; j++){ /* remove stationary targets by subtracting pairs (highpass filter) */ for (k=0; k< ECHO_SIZE; k++){ rin = getinput(); iin = getinput(); echos[k][j].real = rin - last_echo[k].real; echos[k][j].imag = iin - last_echo[k].imag; last_echo[k].real = rin; last_echo[k].imag = iin; } } /* do FFTs on each range sample */ for (k=0; k< ECHO_SIZE; k++) { fft(echos[k],M); for(j = 0 ; j < FFT_LENGTH ; j++) { tempflt = echos[k][j].real * echos[k][j].real; tempflt += echos[k][j].imag * echos[k][j].imag; mag[j] = tempflt; } /* find the biggest magnitude spectral bin and output */ tempflt = mag[0]; i=0; for(j = 1 ; j < FFT_LENGTH ; j++) { if(mag[j] > tempflt) { tempflt = mag[j]; i=j; } } /* interpolate the peak loacation */ p1 = mag[i] - mag[i-1]; p2 = mag[i] - mag[i+1]; sendout((float)i + (p1-p2)/(2*(p1+p2+1e-30))); } } }
